本文主要介绍spring事务（JDBC单数据库事务管理）的核心源码实现

1、核心类介绍

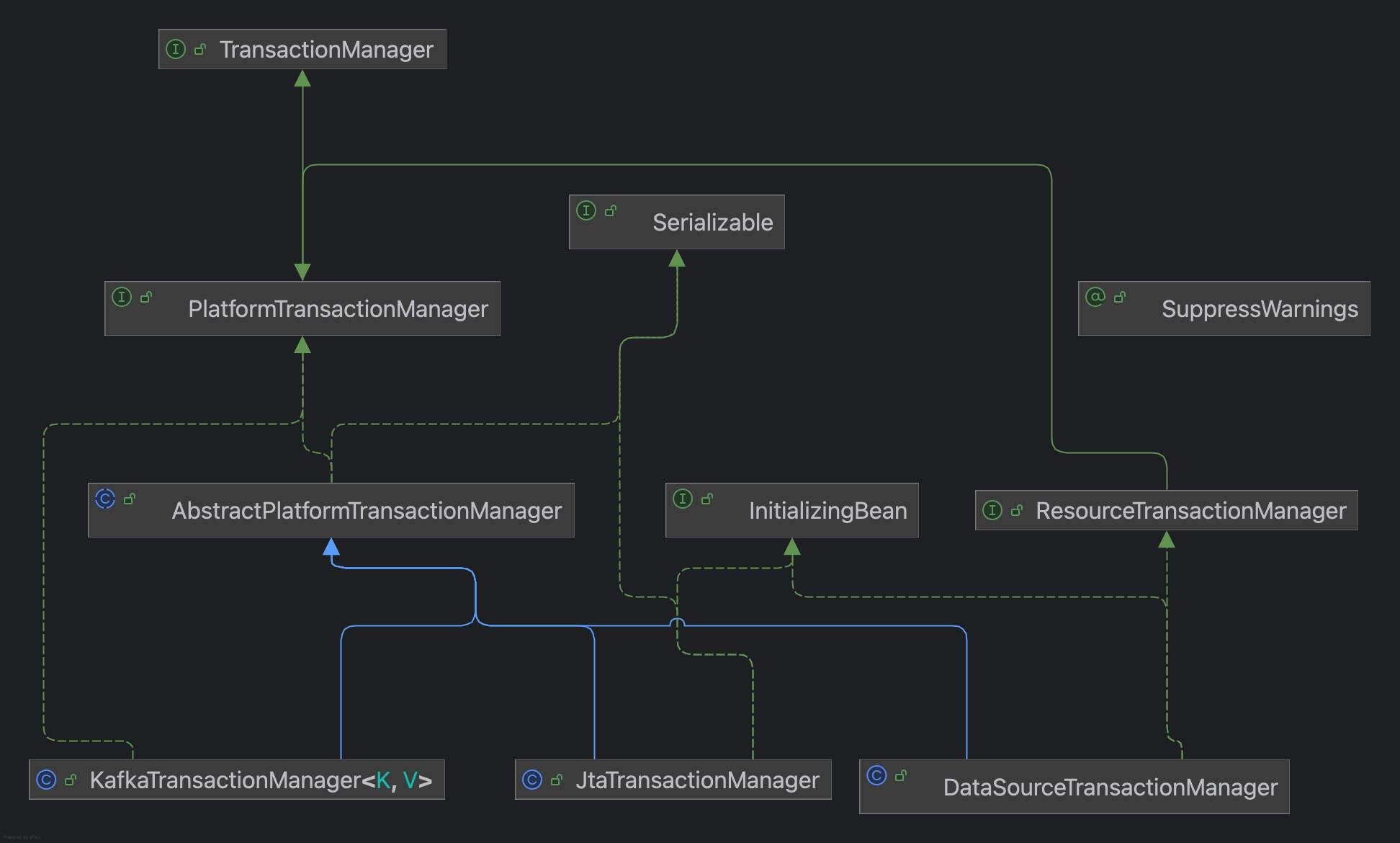

我们可以先看一下核心类图。

• PlatformTransactionManager 底层接口，定义事务方法

public interface PlatformTransactionManager extends TransactionManager {
    TransactionStatus getTransaction(@Nullable TransactionDefinition definition)
    void commit(TransactionStatus status) throws TransactionException;
    void rollback(TransactionStatus status) throws TransactionException;
}

• AbstractPlatformTransactionManager 抽象类，实现PlatformTransactionManager接口，并定义了一些抽象方法比如doCommit、doRollback留给子类实现（这里使用了设计模式中的模板模式）。
• DataSourceTransactionmanager JDBC单数据库事务管理器，基于Connection实现
• JtaTransactionManager 分布式事务管理器（本文不展开介绍）
• KafkaTransactionManager Kafka事务管理器（本文不展开介绍）

2、核心方法实现

2.1、getTransaction获取事务

• AbstractPlatformTransactionManager.getTransaction实现

@Override
public final TransactionStatus getTransaction(@Nullable TransactionDefinition definition)
       throws TransactionException {

    // Use defaults if no transaction definition given.
    TransactionDefinition def = (definition != null ? definition : TransactionDefinition.withDefaults());

    //模板模式，由子类实现
    Object transaction = doGetTransaction();
    boolean debugEnabled = logger.isDebugEnabled();

    //当前已存在事务
    if (isExistingTransaction(transaction)) {
       // Existing transaction found -> check propagation behavior to find out how to behave.
       return handleExistingTransaction(def, transaction, debugEnabled);
    }

    // Check definition settings for new transaction.
    if (def.getTimeout() < TransactionDefinition.TIMEOUT_DEFAULT) {
       throw new InvalidTimeoutException("Invalid transaction timeout", def.getTimeout());
    }

    // No existing transaction found -> check propagation behavior to find out how to proceed.
    //传播类型为MANDATORY(强制性的)，如果当前无事务则抛出异常
    if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
       throw new IllegalTransactionStateException(
             "No existing transaction found for transaction marked with propagation 'mandatory'");
    }
    //传播类型为REQUIRED、REQUIRES_NEW、NESTED则新开启一个事务
    else if (def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||
          def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW ||
          def.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
       SuspendedResourcesHolder suspendedResources = suspend(null);
       if (debugEnabled) {
          logger.debug("Creating new transaction with name [" + def.getName() + "]: " + def);
       }
       try {
          return startTransaction(def, transaction, debugEnabled, suspendedResources);
       }
       catch (RuntimeException | Error ex) {
          resume(null, suspendedResources);
          throw ex;
       }
    }
    //传播类型为SUPPORTS、NOT_SUPPORTED、NEVER
    else {
       // Create "empty" transaction: no actual transaction, but potentially synchronization.
       //如果当前事务隔离级别不是-1，并且开启warn提醒，则打印一条warn日T志
       if (def.getIsolationLevel() != TransactionDefinition.ISOLATION_DEFAULT && logger.isWarnEnabled()) {
          logger.warn("Custom isolation level specified but no actual transaction initiated; " +
                "isolation level will effectively be ignored: " + def);
       }
       boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
       return prepareTransactionStatus(def, null, true, newSynchronization, debugEnabled, null);
    }
}

• AbstractPlatformTransactionManager.handleExistingTransaction实现 该方法用于处理当前已存在事务的情况

private TransactionStatus handleExistingTransaction(
       TransactionDefinition definition, Object transaction, boolean debugEnabled)
       throws TransactionException {

    //事务传播类型为NEVER，抛出异常
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NEVER) {
       throw new IllegalTransactionStateException(
             "Existing transaction found for transaction marked with propagation 'never'");
    }

    //事务传播类型为NOT_SUPPORTED，挂起当前事务
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NOT_SUPPORTED) {
       if (debugEnabled) {
          logger.debug("Suspending current transaction");
       }
       //挂起当前事务
       Object suspendedResources = suspend(transaction);
       boolean newSynchronization = (getTransactionSynchronization() == SYNCHRONIZATION_ALWAYS);
       //创建空事务
       return prepareTransactionStatus(
             definition, null, false, newSynchronization, debugEnabled, suspendedResources);
    }

    //事务传播类型为REQUIRES_NEW，挂起当前事务，开启新事物
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW) {
       if (debugEnabled) {
          logger.debug("Suspending current transaction, creating new transaction with name [" +
                definition.getName() + "]");
       }
       SuspendedResourcesHolder suspendedResources = suspend(transaction);
       try {
          return startTransaction(definition, transaction, debugEnabled, suspendedResources);
       }
       catch (RuntimeException | Error beginEx) {
          resumeAfterBeginException(transaction, suspendedResources, beginEx);
          throw beginEx;
       }
    }

    //事务传播类型为NESTED
    if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
       if (!isNestedTransactionAllowed()) {
          throw new NestedTransactionNotSupportedException(
                "Transaction manager does not allow nested transactions by default - " +
                "specify 'nestedTransactionAllowed' property with value 'true'");
       }
       if (debugEnabled) {
          logger.debug("Creating nested transaction with name [" + definition.getName() + "]");
       }
       if (useSavepointForNestedTransaction()) {
          // Create savepoint within existing Spring-managed transaction,
          // through the SavepointManager API implemented by TransactionStatus.          // Usually uses JDBC savepoints. Never activates Spring synchronization.          //创建一个保存点
          DefaultTransactionStatus status =
                prepareTransactionStatus(definition, transaction, false, false, debugEnabled, null);
          status.createAndHoldSavepoint();
          return status;
       }
       else {
          // Nested transaction through nested begin and commit/rollback calls.
          // Usually only for JTA: Spring synchronization might get activated here          // in case of a pre-existing JTA transaction.
          return startTransaction(definition, transaction, debugEnabled, null);
       }
    }

• AbstractPlatformTransactionManager.suspend 事务挂起

protected final SuspendedResourcesHolder suspend(@Nullable Object transaction) throws TransactionException {
    //判断事务同步状态是否激活
    if (TransactionSynchronizationManager.isSynchronizationActive()) {
       List<TransactionSynchronization> suspendedSynchronizations = doSuspendSynchronization();
       try {
          Object suspendedResources = null;
          if (transaction != null) {
             //挂起当前事务
             suspendedResources = doSuspend(transaction);
          }
          String name = TransactionSynchronizationManager.getCurrentTransactionName();
          //清空当前事务名称
          TransactionSynchronizationManager.setCurrentTransactionName(null);
          boolean readOnly = TransactionSynchronizationManager.isCurrentTransactionReadOnly();
          //readOnly置为false
          TransactionSynchronizationManager.setCurrentTransactionReadOnly(false);
          Integer isolationLevel = TransactionSynchronizationManager.getCurrentTransactionIsolationLevel();
          //事务隔离级别设置为null
          TransactionSynchronizationManager.setCurrentTransactionIsolationLevel(null);
          boolean wasActive = TransactionSynchronizationManager.isActualTransactionActive();
          //事务实际活跃状态设置为false
          TransactionSynchronizationManager.setActualTransactionActive(false);
          return new SuspendedResourcesHolder(
                suspendedResources, suspendedSynchronizations, name, readOnly, isolationLevel, wasActive);
       }
       catch (RuntimeException | Error ex) {
          // doSuspend failed - original transaction is still active...
          //异常情况恢复同步信息
          doResumeSynchronization(suspendedSynchronizations);
          throw ex;
       }
    }
    else if (transaction != null) {
       // Transaction active but no synchronization active.
       Object suspendedResources = doSuspend(transaction);
       return new SuspendedResourcesHolder(suspendedResources);
    }
    else {
       // Neither transaction nor synchronization active.
       return null;
    }
}

其中doSuspend会执行当前事务的挂起操作，AbstractPlatformTransactionManager抽象类doSuspend()会直接抛出异常，依赖于具体事务执行器的实现，DataSourceTransactionManager实现如下：

protected Object doSuspend(Object transaction) {
    DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
    //连接持有对象置为null
    txObject.setConnectionHolder(null);
    //删除datasource
    return TransactionSynchronizationManager.unbindResource(obtainDataSource());
}

其中核心操作包含两步 1、当前事务清空ConnectionHolder 2、当前线程解绑datasource（ThreadLocal中移除resources对应的key）

• TransactionSynchronizationManager 事务同步管理器，该类维护了多个线程本地变量ThreadLocal，如下所示：

public abstract class TransactionSynchronizationManager {

    //事务资源
    private static final ThreadLocal<Map<Object, Object>> resources =
          new NamedThreadLocal<>("Transactional resources");

    //事务同步信息
    private static final ThreadLocal<Set<TransactionSynchronization>> synchronizations =
          new NamedThreadLocal<>("Transaction synchronizations");

    //当前事务名称
    private static final ThreadLocal<String> currentTransactionName =
          new NamedThreadLocal<>("Current transaction name");

    //事务只读状态
    private static final ThreadLocal<Boolean> currentTransactionReadOnly =
          new NamedThreadLocal<>("Current transaction read-only status");

    //事务隔离级别
    private static final ThreadLocal<Integer> currentTransactionIsolationLevel =
          new NamedThreadLocal<>("Current transaction isolation level");

    //事务活跃状态
    private static final ThreadLocal<Boolean> actualTransactionActive =
          new NamedThreadLocal<>("Actual transaction active");
    //......
}

• DataSourceTransactionManager.doBegin

protected void doBegin(Object transaction, TransactionDefinition definition) {
    DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
    Connection con = null;

    try {
       //如果事务对象还没有ConnectionHolder或者其事务同步中
       if (!txObject.hasConnectionHolder() ||
             txObject.getConnectionHolder().isSynchronizedWithTransaction()) {
          //获取新的数据库连接对象
          Connection newCon = obtainDataSource().getConnection();
          if (logger.isDebugEnabled()) {
             logger.debug("Acquired Connection [" + newCon + "] for JDBC transaction");
          }
          //设置ConnectionHolder
          txObject.setConnectionHolder(new ConnectionHolder(newCon), true);
       }

       //设置新的ConnectionHolder为事务同步中
       txObject.getConnectionHolder().setSynchronizedWithTransaction(true);
       con = txObject.getConnectionHolder().getConnection();

       Integer previousIsolationLevel = DataSourceUtils.prepareConnectionForTransaction(con, definition);
       //设置事务隔离级别、readOnly
       txObject.setPreviousIsolationLevel(previousIsolationLevel);
       txObject.setReadOnly(definition.isReadOnly());

       // Switch to manual commit if necessary. This is very expensive in some JDBC drivers,
       // so we don't want to do it unnecessarily (for example if we've explicitly       // configured the connection pool to set it already).       if (con.getAutoCommit()) {
          txObject.setMustRestoreAutoCommit(true);
          if (logger.isDebugEnabled()) {
             logger.debug("Switching JDBC Connection [" + con + "] to manual commit");
          }
          //如果是自动提交切换到手动提交
          con.setAutoCommit(false);
       }

       //如果只读，执行sql设置事务为只读
       prepareTransactionalConnection(con, definition);
       //设置事务active状态
       txObject.getConnectionHolder().setTransactionActive(true);

       //设置超时时间
       int timeout = determineTimeout(definition);
       if (timeout != TransactionDefinition.TIMEOUT_DEFAULT) {
          txObject.getConnectionHolder().setTimeoutInSeconds(timeout);
       }

       // Bind the connection holder to the thread.
       //绑定ConnectionHolder到当前线程(thread的ThreadLocalMap)
       if (txObject.isNewConnectionHolder()) {
          TransactionSynchronizationManager.bindResource(obtainDataSource(), txObject.getConnectionHolder());
       }
    }

    catch (Throwable ex) {
       if (txObject.isNewConnectionHolder()) {
          //出现异常释放连接并清空ConnectionHolder
          DataSourceUtils.releaseConnection(con, obtainDataSource());
          txObject.setConnectionHolder(null, false);
       }
       throw new CannotCreateTransactionException("Could not open JDBC Connection for transaction", ex);
    }
}

该方法的核心操作是： 1、获取新的数据库连接对象，设置ConnectionHolder 2、在当前线程的ThreadLocal变量resources中设置key-value（key=DataSource对象，value=ConnectionHolder）

2.2、commit提交事务

• AbstractPlatformTransactionManager.commit

public final void commit(TransactionStatus status) throws TransactionException {
    //如果事务已完成，抛出异常
    if (status.isCompleted()) {
       throw new IllegalTransactionStateException(
             "Transaction is already completed - do not call commit or rollback more than once per transaction");
    }

    DefaultTransactionStatus defStatus = (DefaultTransactionStatus) status;
    //事务标记为回滚
    if (defStatus.isLocalRollbackOnly()) {
       if (defStatus.isDebug()) {
          logger.debug("Transactional code has requested rollback");
       }
       //执行回滚
       processRollback(defStatus, false);
       return;
    }

    //不需要全局回滚时提交 && 全局回滚
    if (!shouldCommitOnGlobalRollbackOnly() && defStatus.isGlobalRollbackOnly()) {
       if (defStatus.isDebug()) {
          logger.debug("Global transaction is marked as rollback-only but transactional code requested commit");
       }
       processRollback(defStatus, true);
       return;
    }

    //执行事务提交
    processCommit(defStatus);
}

• AbstractPlatformTransactionManager.processCommit

private void processCommit(DefaultTransactionStatus status) throws TransactionException {
    try {
       boolean beforeCompletionInvoked = false;

       try {
          boolean unexpectedRollback = false;
          //3个前置操作
          prepareForCommit(status);
          triggerBeforeCommit(status);
          triggerBeforeCompletion(status);
          beforeCompletionInvoked = true;

          //有保存点，即嵌套事务
          if (status.hasSavepoint()) {
             if (status.isDebug()) {
                logger.debug("Releasing transaction savepoint");
             }
             unexpectedRollback = status.isGlobalRollbackOnly();
             //释放保存点
             status.releaseHeldSavepoint();
          }
          //新事务
          else if (status.isNewTransaction()) {
             if (status.isDebug()) {
                logger.debug("Initiating transaction commit");
             }
             unexpectedRollback = status.isGlobalRollbackOnly();
             //执行提交
             doCommit(status);
          }
          //全局回滚失败
          else if (isFailEarlyOnGlobalRollbackOnly()) {
             unexpectedRollback = status.isGlobalRollbackOnly();
          }

          // Throw UnexpectedRollbackException if we have a global rollback-only
          // marker but still didn't get a corresponding exception from commit.          if (unexpectedRollback) {
             throw new UnexpectedRollbackException(
                   "Transaction silently rolled back because it has been marked as rollback-only");
          }
       }
       catch (UnexpectedRollbackException ex) {
          // can only be caused by doCommit
          //触发完成后事务同步，状态为回滚
          triggerAfterCompletion(status, TransactionSynchronization.STATUS_ROLLED_BACK);
          throw ex;
       }
       catch (TransactionException ex) {
          // can only be caused by doCommit
          //提交失败回滚
          if (isRollbackOnCommitFailure()) {
             doRollbackOnCommitException(status, ex);
          }
          else {
             //触发完成后回调，事务同步状态为未知
             triggerAfterCompletion(status, TransactionSynchronization.STATUS_UNKNOWN);
          }
          throw ex;
       }
       catch (RuntimeException | Error ex) {
          //如果3个前置步骤没有执行完，调用前置最后一步操作
          if (!beforeCompletionInvoked) {
             triggerBeforeCompletion(status);
          }
          doRollbackOnCommitException(status, ex);
          throw ex;
       }

       // Trigger afterCommit callbacks, with an exception thrown there
       // propagated to callers but the transaction still considered as committed.       try {
          triggerAfterCommit(status);
       }
       finally {
          triggerAfterCompletion(status, TransactionSynchronization.STATUS_COMMITTED);
       }

    }
    finally {
       cleanupAfterCompletion(status);
    }
}

2.3、rollback回滚事务

• AbstractPlatformTransactionManager.processRollback

private void processRollback(DefaultTransactionStatus status, boolean unexpected) {
    try {
       boolean unexpectedRollback = unexpected;

       try {
          //触发前置操作：遍历事务同步信息触发beforeCompletion
          triggerBeforeCompletion(status);

          //有保存点(即嵌套式事务)，回滚到保存点
          if (status.hasSavepoint()) {
             if (status.isDebug()) {
                logger.debug("Rolling back transaction to savepoint");
             }
             status.rollbackToHeldSavepoint();
          }
          else if (status.isNewTransaction()) {
             if (status.isDebug()) {
                logger.debug("Initiating transaction rollback");
             }
             //执行回滚
             doRollback(status);
          }
          else {
             //非新事务&无保存点，加入当前事务
             // Participating in larger transaction
             if (status.hasTransaction()) {
                if (status.isLocalRollbackOnly() || isGlobalRollbackOnParticipationFailure()) {
                   if (status.isDebug()) {
                      logger.debug("Participating transaction failed - marking existing transaction as rollback-only");
                   }
                   doSetRollbackOnly(status);
                }
                else {
                   if (status.isDebug()) {
                      logger.debug("Participating transaction failed - letting transaction originator decide on rollback");
                   }
                }
             }
             else {
                logger.debug("Should roll back transaction but cannot - no transaction available");
             }
             // Unexpected rollback only matters here if we're asked to fail early
             if (!isFailEarlyOnGlobalRollbackOnly()) {
                unexpectedRollback = false;
             }
          }
       }
       catch (RuntimeException | Error ex) {
          triggerAfterCompletion(status, TransactionSynchronization.STATUS_UNKNOWN);
          throw ex;
       }

       //遍历事务同步信息执行invokeAfterCompletion
       triggerAfterCompletion(status, TransactionSynchronization.STATUS_ROLLED_BACK);

       // Raise UnexpectedRollbackException if we had a global rollback-only marker
       if (unexpectedRollback) {
          throw new UnexpectedRollbackException(
                "Transaction rolled back because it has been marked as rollback-only");
       }
    }
    finally {
       //完成后清理
       cleanupAfterCompletion(status);
    }
}
